Disclosure: Some links on this page are monetized by the Skimlinks, Amazon, Rakuten Advertising, and eBay, affiliate programs, and Liliputing may earn a commission if you make a purchase after clicking on those links. All prices are subject to change, and this article only reflects the prices available at time of publication.

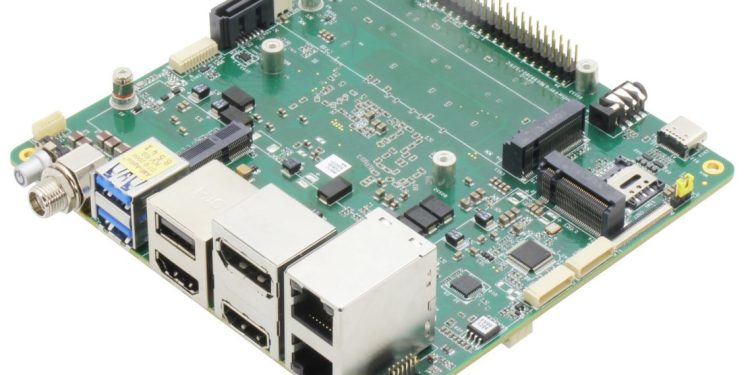

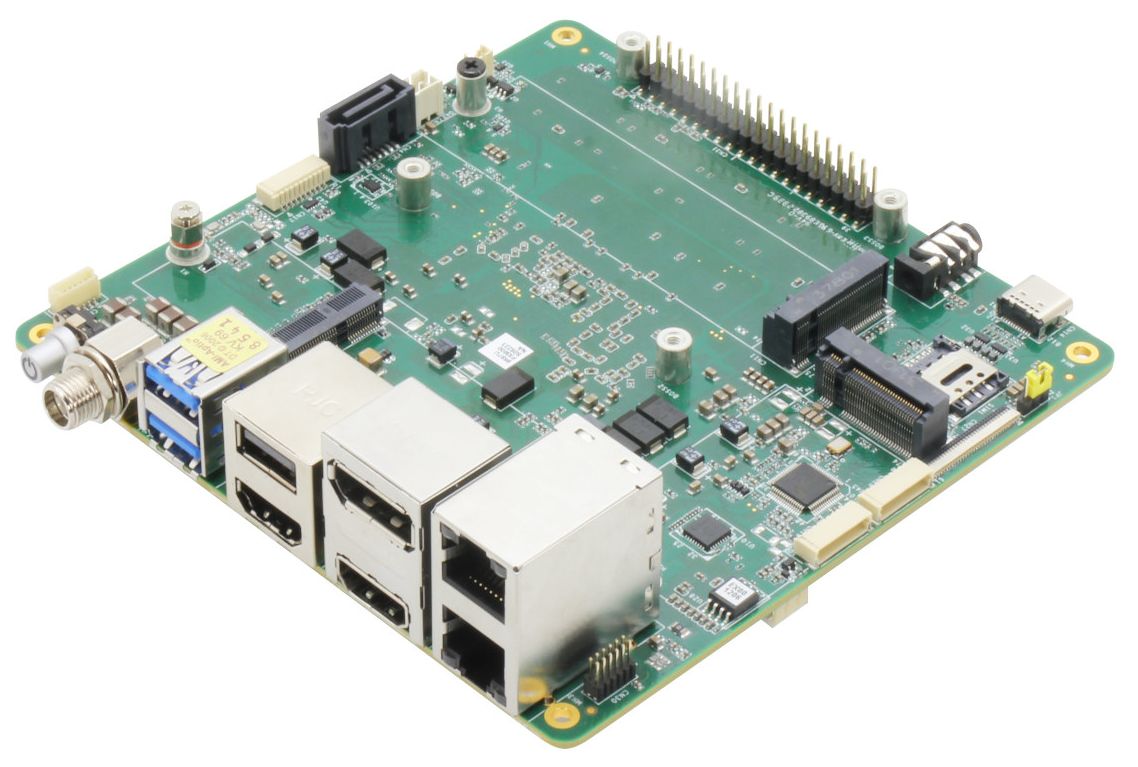

The UP Xtreme i14 from AAEON is a 120 x 123mm (4.7″ x 4.8″) computer board with support for up to an Intel Core Ultra 7 H-series Meteor Lake processor, support for up to four displays, four M.2 slots for NVMe storage, AI accelerators, wireless cards, and other add-ons, a SATA connector, and a 40-pin GPIO header.
In other words, it’s a versatile board that you could use to build your own mini PC. But with prices starting at $749 during pre-orders, there are cheaper options if you just want a small computer with a Meteor Lake processor. Instead AAEON positions this as a board that can be used for retail, industrial, robotics, or other commercial applications.
The UP Xtreme i14 is the latest in a long line of AAEON products sold under the UP brand. Intel may have moved beyond the Core i3/i5/i7 branding for its latest processors, and the company does not refer to Meteor Lake processors as 14th-gen Core chips, but that hasn’t stopped AAEON from sticking with to the same naming convention the company has used on previous models, so the UP Xtreme i14 is a direct successor to the UP Xtreme i12 that launched a few years ago.
While the UP Shop refers to these as single-board computers, I’m a little wary of using that description for a product with four M.2 slots and no onboard wireless. But the UP Xtreme i14 does have a processor and LPDDR5-6400 memory soldered to the mainboard.
The $749 starting price will get you a model with an Intel Core Ultra 5 125H processor and 16GB of RAM. You can also opt for a Core Ultra 7 155H/32GB model for $959. Keep in mind that neither configuration includes storage or an operating system: you’ll have to provide your own.
According to the official spec sheet, AAEON may also offer models with Core Ultra 5 135H or Core Ultra 7 165H processor options and up to 64GB of RAM.
All models feature:
- 2 x M.2 2280 (PCIe Gen 4 x4 for NVMe or SATA SSD, Halio-8 AI accelerator, etc)
- 1 x M.2 2230 (PCIe Gen 3 x1 for wireless card)
- 1 x M.2 3052 (PCIe Gen 3 x)
- 1 x SATA 3 connector
- 40-pin GPIO header
- 1 x MIPI-CSI 61-pin FPC connector (for a camera)
There are also a set of ports that include:
- 2 x HDMI 2.1
- 1 x DisplayPort 2.1
- 1 x USB 3.2 Gen 2 Type-C (w/DisplayPort Alt Mode)
- 2 x USB 3.2 Gen 2 Type-A
- 1 x USB 2.0 Type-A
- 1 x 2.5 GbE Ethernet (Intel i226-IT)
- 1 x Gigabit Ethernet (Intel i219)
- 1 x DC power input (9V to 36V)
AAEON says the board can handle Windows 10 or newer operating systems, as well as GNU/Linux distributions running kernel version 6.5 or later including Ubuntu 22.04.
press release (via CNX Software)
